	KeyCreator V3 Training Video(s) - Create Arcs

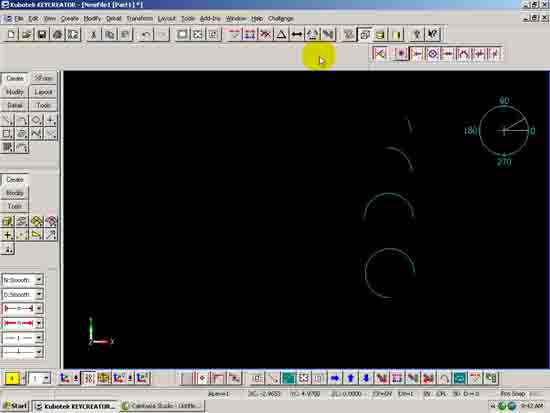

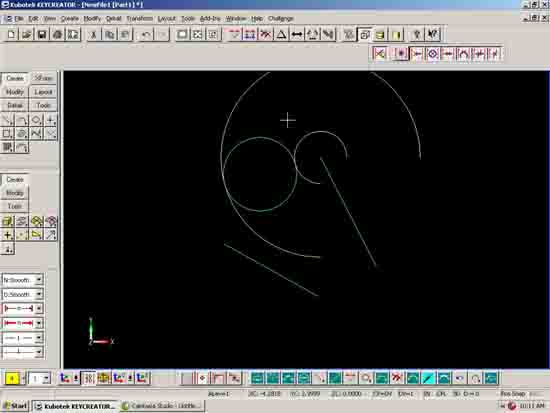

	Displaying results 1-3 (of 3) First « Back1Next » Last You must sign in to purchase videos! Title : V21-Center and Radius, Center and Diameter, Center and Edge, 3 Positions Video Run Time Is : 3:02 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Create an arc specifying the center point and the radius >> Create an arc specifying the center point and the radius >> Create an arc specifying the center point and an edge location >> Create an arc specifying 3 positions This demonstration uses the create arc command by selecting the Create, Arc tool on the modeling toolbar or using the A hotkey. Creating an arc using the first three options listed above will prompt for a beginning angle, end angle, and a center point. A positive angle for both will create the arc in a counterclockwise direction. The size is determined by the radius or diameter entered and by the location of the edge point. The size and location for the fourth option will determine the center location and the size. Veiw The Sample Video! Video Price : $3.00 Title : V22-2 Tangents, 3 Tangents, Center and Tangent, Tangent & End Pt Video Run Time Is : 2:34 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Create an arc tangent to 2 entities >> Create an arc tangent to 3 entities >> Create an arc specifying the center point and tangent to an entity >> Create an arc tangent to an entity and specifying the end point This demonstration continues with the Create, Arc, tool on the modeling toolbar or using the A hotkey. Creating an arc tangent to 2 or 3 entities prompts for the beginning and end angles and the radius of the arc. When creating an arc specifying the center point and the tangent entity the size is determined by the location of the center point. Creating an arc tangent to an entity and specifying the end point will determine the size. Veiw The Sample Video! Video Price : $2.00 Title : V23-Included Angle, Radius and 2 Positions, Offset Distance, Offset Position Video Run Time Is : 3:51 Min. Video Description: After Viewing this video and applying the demonstration you will be able to: >> Create an arc by specifying the beginning and ending position and the included angle >> Create an arc by specifying a radius and 2 positions >> Create an arc by offsetting from an existing arc a specific distance >> Create an arc by offsetting from an existing arc through a point >> Verify angle between two lines This demonstration continues with the Create, Arc, tool on the modeling toolbar or using the A hotkey. Creating an arc by specifying the beginning and ending position and included angle determines the size by the points picked. How to verify the angle between two lines is also demonstrated. The size of the arc and the beginning and ending locations are determined by the arc being offset from. Veiw The Sample Video! Video Price : $3.00 If you Purchase the Full CD from Geotrictech.com then you will also get the online video access for free. In addition, if you purchase any of the individual videos and then decide to purchase the full CD set then we will apply the previous amount that you have already purchased towards the Price of the CD set.
